Storage Hinges
Storage hinge manufacturer STAN: 4 models. Key data, order codes and installation videos; export and private label (OEM), Gebze, Türkiye.
- Models
- 4
- Opening
- 42–60°
At the same scale
Used inOpeningGas springFinishSpring
- Used in
- Storage sofa
- Opening
- 55°
- Gas spring
- GA-305 × 2 · 300–1200 N (optional)
- Finish (standard)
- Zinc plated
- Used in
- Storage sofa
- Opening
- 45°
- Gas spring
- GA-305 × 2 · 300–1200 N (optional)
- Finish (standard)
- Zinc plated
- Used in
- Storage sofa
- Opening
- 42°
- Finish (standard)
- Zinc plated
- Used in
- Storage sofa
- Opening
- 60° · 7 positions (10° steps)
- Fixing
- M6 bolts
- Spring
- Extension spring (YY-500, sold separately)
- Finish (standard)
- Zinc plated
Comparison
| Model | Used in | Opening / movement | Gas spring / spring | Finish | Fixing | What sets it apart |
|---|---|---|---|---|---|---|

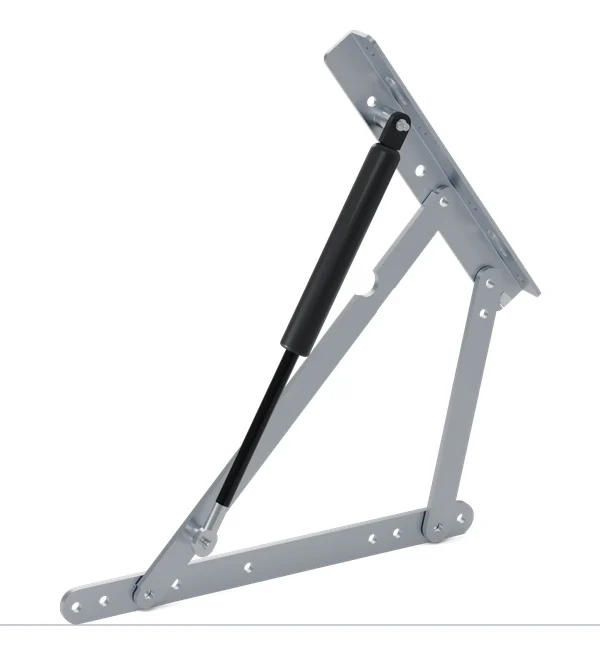

| SL-100Standard Storage HingeSL-100-PB SL-100-Y | Storage sofa | 55° | GA-305 × 2 · 300–1200 N (optional) · Y: spring ø22 · wire 2.5 · extension spring | Zinc plated · Black powder coat (PB, Y) | Hex bolts to the box · countersunk bolts to the lid | Core storage hinge; zinc, black-washer and spring options |

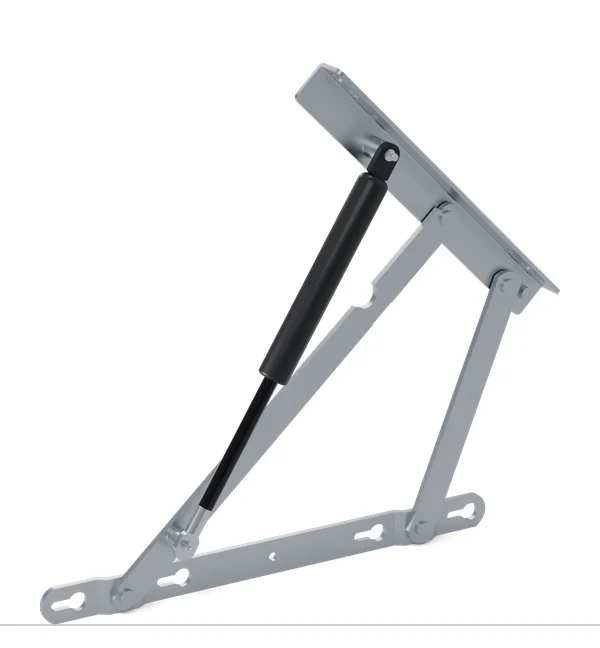

| SL-110Standard II Storage HingeSL-110-B | Storage sofa | 45° | GA-305 × 2 · 300–1200 N (optional) | Zinc plated · Black powder coat (B) | Keyholes: slid over the bolts, then tightened | The renewed model of the Standard |

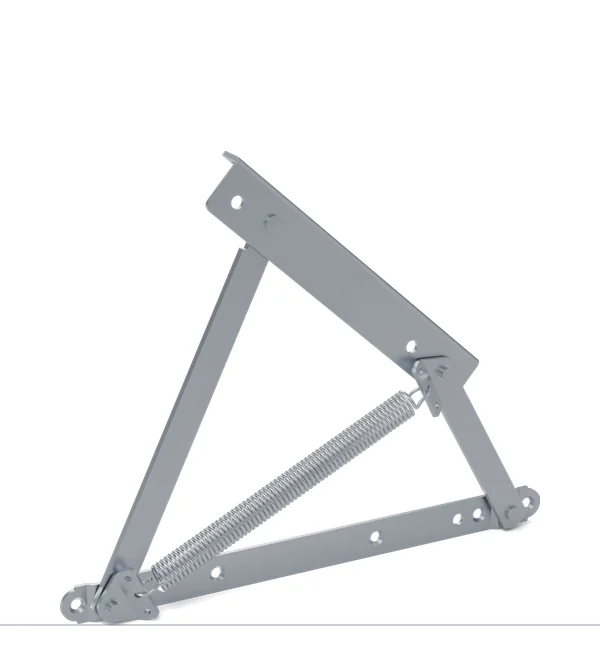

| SL-200Midi Storage Hinge | Storage sofa | 42° | — | Zinc plated | Screws + bolts to the box · countersunk bolts to the lid | Mid-size storage hinge |

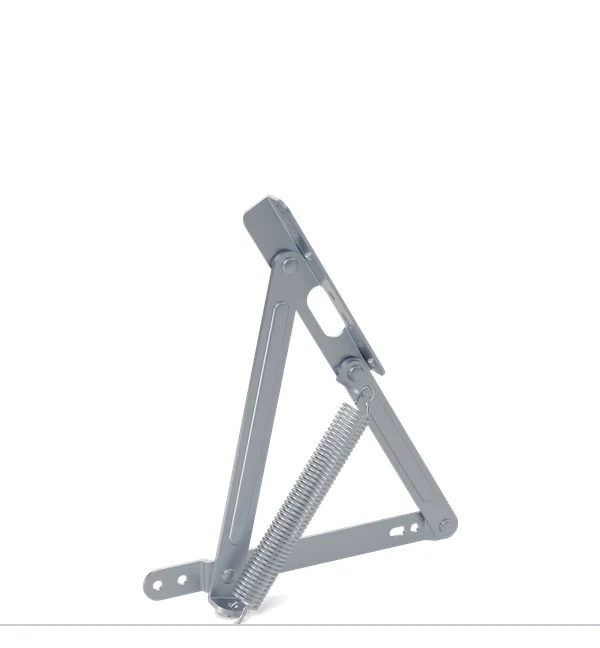

| SL-450Small Storage Hinge | Storage sofa | 60° · 7 positions (10° steps) | spring Extension spring (YY-500, sold separately) | Zinc plated | M6 bolts | Compact small storage hinge; opens to 60°, spring sold separately |
Frequently asked questions
What is the difference between a storage hinge and a bed lift?
A storage hinge lifts the seat of a storage sofa or armchair. A bed lift raises the mattress platform of a storage bed. Bed lifts always come as a set with two gas springs. On storage hinges the gas springs are optional on some models, and others use a spring instead.
Which storage hinges use gas springs, and which use springs?
What is the opening angle of each storage hinge?
What finishes are available?
How do I install a storage hinge?
Fit the mechanism in the closed position, without the gas spring or spring, and bolt it in place. Fit the gas spring or spring last. Before upholstering, open and close the seat fully 2–3 times. Each product page has the steps and a video under Installation.
